Manual S1P

Details

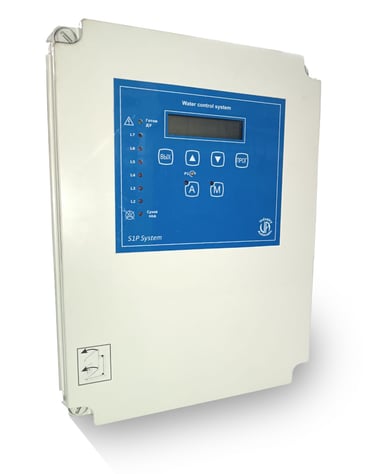

Control cabinet for one 3-phase (single-phase for power up to 2.2 kW) pump for pressure boosting, filling, drainage, circulation systems.

Type S1P 0,55..110кWt

Application:

The сontrol cabinet maintains a constant pressure by smoothly adjusting the speed of the pump automatically depending on fluid flow, time and possible malfunctions.

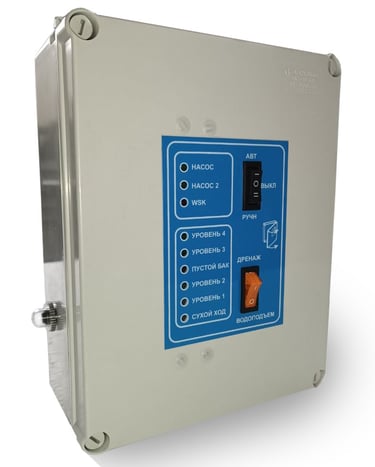

Control and protection unit for a single-phase domestic borehole pump.

Type SPSM 1,5...2,2кWt

Manual SPSM-1,5

The control unit is equipped with an electrode level sensor with a 50 m cable

Application:

The SPSM unit is used to control and protect a single-phase pump and provides the following functionalities

• automatic (based on signals from float or electrode level sensors, pressure switches) control of the electric pump start/stop;

• protection of the electric motor against short-circuit currents, protection of the electric motor against over/under voltage;

• built-in circuit breaker with thermal protection;

• protection of the pump unit against dry running based on a signal from a float or electrode sensor;

• light indication of the pump status, level sensor, and emergency modes.

Manual СУН

Detail

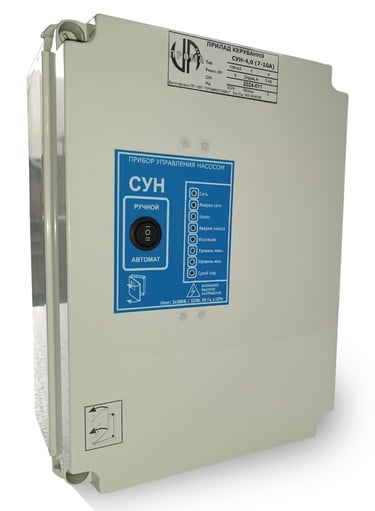

Control and protection cabinet for one 3-phase pump (Basic solution).

Type СУН

Application:

The device is used to maintain the pressure within the specified range by connecting the pump via a soft starter (type -SS) or directly from the mains (type -DE) and is used as a basic pump protection and control unit.

Can be used as a drainage pump protection unit.

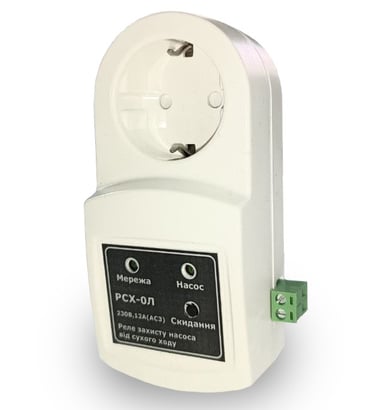

Manual PCX-0Л

Dry-running protection device ‘PCX-0L’.

Type PCX

Application:

The PCX is used to protect a 1-phase pump from dry running and provides protection of the pump unit during dry-running operation by a float or electrode sensor signal.

Manual PCX-0D

Dry-running protection device ‘PCX-0D’.

Type PCX

Application:

The PCX is used to protect a 1-phase pump from dry running and provides protection of the pump unit during dry-running operation by a float or electrode sensor signal.

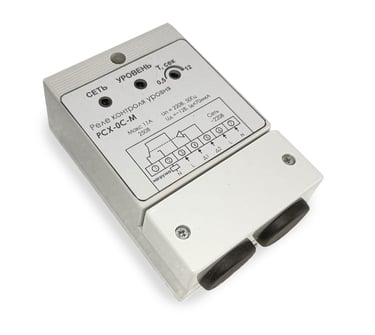

Manual PCX-0D-M

Dry-running protection device ‘PCX-0D-M’.

Type PCX

Application:

The PCX is used to protect a 1-phase pump from dry running and provides protection of the pump unit during dry-running operation by a float or electrode sensor signal.
